Chapter 5: Multi-Head Attention

One attention head produces one attention matrix. At every token position, that matrix gives a single weighted mixture of the earlier value vectors. A single head can learn a useful communication pattern, but every kind of relationship must compete for the same query, key, and value representation.

Multi-head attention gives the same input several independent views. Each head has its own learned query, key, and value projections:

\operatorname{head}_h(X) = \operatorname{Attention}(XW_Q^{(h)}, XW_K^{(h)}, XW_V^{(h)})

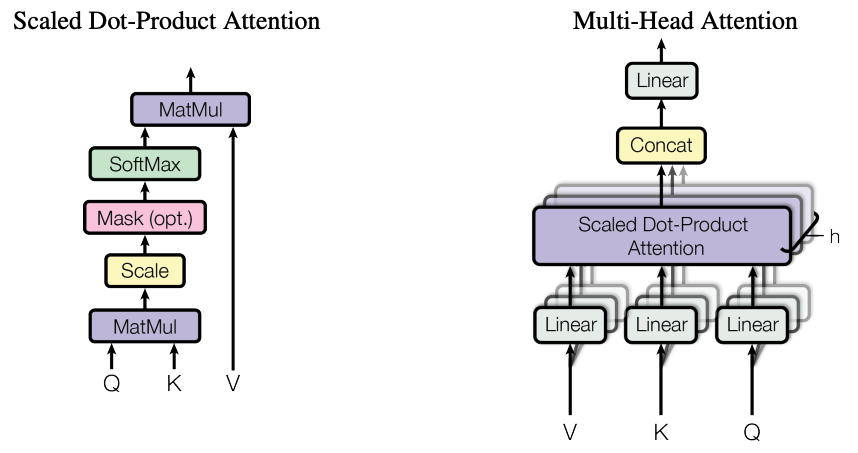

Multi-head attention architecture: several scaled dot-product attention heads run in parallel, their outputs are concatenated, and a final linear layer combines them.

The heads are not manually assigned roles. During training, one head may become useful for nearby-token patterns while another may focus on a different earlier position or a different feature of the context. The model can therefore consider several relationships at the same token position instead of reducing everything to one set of attention weights.

Their outputs are concatenated and then mixed by an output projection:

\operatorname{MultiHead}(X) = \operatorname{Concat}(\operatorname{head}_1, \ldots, \operatorname{head}_H)W_O

In this implementation, for example, if n_embd = 64 and 4 heads use head_size = 16. Each Head turns an input of shape (B, T, 64) into (B, T, 16). Concatenating the four results restores (B, T, 64), and self.proj learns how information from the heads should be combined before the result continues through the Transformer block.

The following example makes the tensor shapes in that diagram concrete.

Four multi-head attention heads each map an input of shape B by T by 64 to B by T by 16. Their outputs are concatenated to B by T by 64, then an output projection mixes the heads.

class Head(nn.Module):
    """ one head of self-attention """

    def __init__(self, head_size):
        super().__init__()
        self.key = nn.Linear(n_embd, head_size, bias=False)
        self.query = nn.Linear(n_embd, head_size, bias=False)
        self.value = nn.Linear(n_embd, head_size, bias=False)
        self.register_buffer('tril', torch.tril(torch.ones(block_size, block_size)))

        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        B,T,C = x.shape
        k = self.key(x)   # (B,T,C)
        q = self.query(x) # (B,T,C)
        wei = q @ k.transpose(-2,-1) * C**-0.5 # (B, T, C) @ (B, C, T) -> (B, T, T)
        wei = wei.masked_fill(self.tril[:T, :T] == 0, float('-inf')) # (B, T, T)
        wei = F.softmax(wei, dim=-1) # (B, T, T)
        wei = self.dropout(wei)
        v = self.value(x) # (B,T,C)
        out = wei @ v # (B, T, T) @ (B, T, C) -> (B, T, C)
        return out

class MultiHeadAttention(nn.Module):
    """ multiple heads of self-attention in parallel """

    def __init__(self, num_heads, head_size):
        super().__init__()
        self.heads = nn.ModuleList([Head(head_size) for _ in range(num_heads)])
        self.proj = nn.Linear(n_embd, n_embd)
        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        out = torch.cat([h(x) for h in self.heads], dim=-1) # on channel dimension
        out = self.dropout(self.proj(out))
        return out
